Αριθμός ανταλλακτικού 136279-1

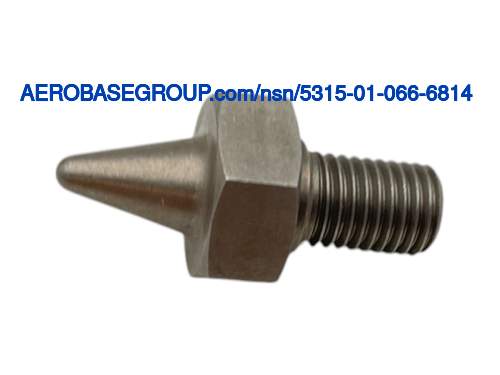

Headless Shoulder Pin
Περιγραφή

Pin

Διαθεσιμότητα αποθεμάτων  Κωδικοί κατάστασης προϊόντος

Αριθμός ανταλλακτικού 136279-1 είναι σε απόθεμα στις ακόλουθες ποσότητες και συνθήκες.

  • NE: 50

Σημείωση: Η διαθεσιμότητα αυτού του στοιχείου ενημερώθηκε τελευταία φορά 08/01/2024 και μπορεί να έχουν αλλάξει από τότε. Ζητήστε προσφορά για ενημερωμένες τιμές και διαθεσιμότητα.

Τιμολόγηση και διαθεσιμότητα

Υποβάλετε αυτήν τη φόρμα για τις τρέχουσες τιμές και τη διαθεσιμότητα αυτού του NSN.
Αριθμός ανταλλακτικού:
Ποσότητα:
Διεύθυνση ηλεκτρονικού ταχυδρομείου:
Τηλέφωνο:
Αναφορά:
Εταιρεία:
Όνομα:

Δεν μοιραζόμαστε ούτε πουλάμε τις πληροφορίες σας σε κανέναν.
Μυστικότητα | Όροι

All major credit cards accepted as well as gov. p-cards

Η ιστορική τιμολόγηση για αυτό το προϊόν είναι μεταξύ 40.22 and 54.297 USD. Ανάλογα με την ποσότητα, τη διαθεσιμότητα, την κατάσταση, τον χρόνο παράδοσης και την πιθανή διακοπή ενός προϊόντος, δεν μπορούμε να εγγυηθούμε την τιμολόγηση μέχρι να σας παρέχουμε μια ενημερωμένη προσφορά.

Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
136279-1
Αποστρατιωτικοποίηση:
No
Διάρκεια ζωής:
N/A
Μονάδα μέτρησης:
1 EA
NIIN:
010666814
NSN
Εθνικός αριθμός αποθέματος:
5315-01-066-6814 5315010666814
TXT
Περιγραφή:
Headless Shoulder Pin
INC
INC
Κωδικός ονόματος στοιχείου:
16749
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the first end.AAGZ
First End Style:
Chamfered
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the second end.AAHP
Second End Style:
Square
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.422 inches
MRC:
A measurement of the longest dimension of the shank,in distinction from width.AATR
Shank Length:
0.437 inches
MRC:
The shortest distance from one flatted surface of the shoulder to the opposite flatted surface.AAVJ
Shoulder Width Across Flats:
0.560 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.372 inches and 0.374 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.200 inches
MRC:
None.AMCS
First End Taper Length:
0.437 inches
MRC:
Indicates whether or not the second end is identical to the first end.CQBB
Second End Relationship With First End:
Not identical
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.312 inches
MRC:
None.CQTR
Second Shank Diameter:
0.312 inches
MRC:
Indicates the location of the first end.CRDY
First End Location:
Unthreaded end
MRC:
None.CRMG
First End Taper Angle:
15.0 degrees
MRC:
None.CRXJ
First End Tip Radius:
0.050 inches
MRC:
None.CWAS
Second Shank Length:
0.437 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Shoulder
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf
