Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
53-131207-001sf84-4-500m0d135l1-
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

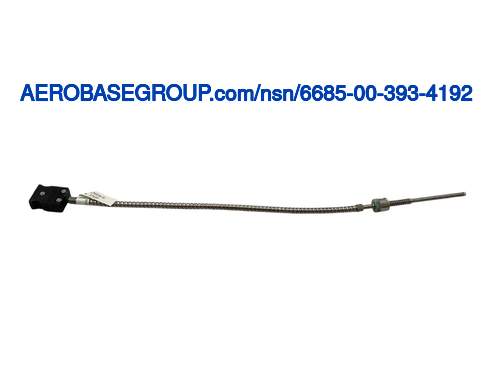

Immersion Thermocouple
Κωδικός ονόματος στοιχείου:
07117
MRC:
The minimum and maximum limits of temperature at which the item is rated for operation.AFGA
Operating Tempurature Range:
+0.0/+800.0 degrees fahrenheit
MRC:
Indicates the type of unit.APQB
Unit Type:
Bayonet
MRC:
The american wire gage size of the accommodated wire.AXNX
Accommodated Wire Awg Size:
20
MRC:
A measurement of the longest dimension of the immersed portion of the item,in distinction from width.BKBW
Immersion Length:
Between 2.813 inches and 3.312 inches
MRC:
A reference number exceeding 32 positions.ELRN
Extra Long Reference Number:
53-131207-001sf84-4-500mod135l12mod134e
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Fiberglass outer jacket insulation/sheathing
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel protective tube
MRC:
A feature of the item of supply which must be specifically recorded when the reference number covers a range of items.ZZZY
Reference Number Differentiating Characteristics:
As differentiated by extra long reference number
