Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
5773203-3.2u
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

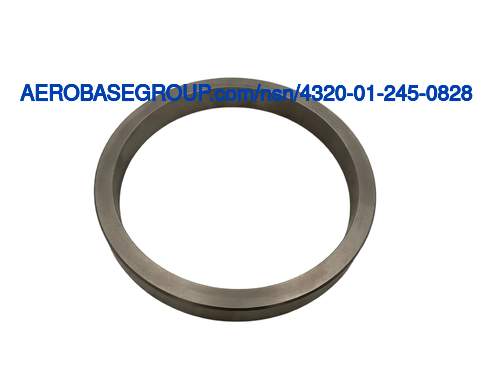

Wearing Ring
Κωδικός ονόματος στοιχείου:
22534
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Plain
MRC:
A measurement of the longest dimension of the chamfer,in distinction from width.AAZP
Chamfer Length:
0.040 inches outside left corner
MRC:
A measurement of the longest dimension of the chamfer,in distinction from width.AAZP
Chamfer Length:
0.040 inches outside right corner
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.810 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 6.753 inches and 6.755 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
6.072 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Fire pumps
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered outside right corner
MRC:
The included angle of the chamfer(s).CSYT
Chamfer Angle:
45.0 degrees outside left corner
MRC:
The included angle of the chamfer(s).CSYT
Chamfer Angle:
45.0 degrees outside right corner
