Αριθμός ανταλλακτικού:
6846640
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

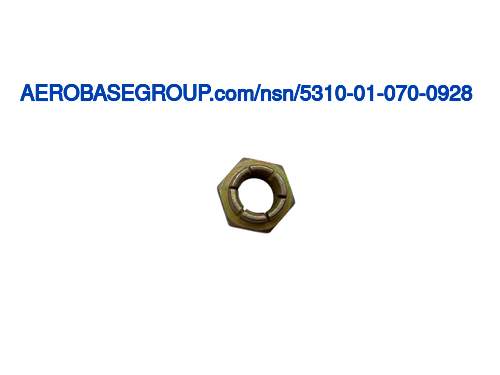

Hexagon Self-locking Nut
Κωδικός ονόματος στοιχείου:
05277
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Any acceptable
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
Nut Height:
Between 0.330 inches and 0.360 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: spruance class dd (963); kidd class ddg; 501k17 gas turbine systems; 501k34 gas turbine systems; arleigh burke class ddg; ticonderoga class cg (47)
MRC:
The length of a straight line which passes through the center of a drilled hole,and terminates at the circumference.AGGP
Drilled Hole Diameter:
0.047 inches
MRC:
Indicates the type and number of holes provided.ALET
Hole Type And Quantity:
3 drilled
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.492 inches and 0.502 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
550.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 26.0 rockwell c and 32.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.312 inches
MRC:
The style designation that most nearly corresponds to the appearance of the hole configuration.CRHC
Hole Configuration Style:
Configuration b
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Chamfered
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 8740
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 6322 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Ams 2400 assn standard single treatment response
