Αριθμός ανταλλακτικού 7132780-01

Turnlock Fastener Ejector Spring

Τιμολόγηση και διαθεσιμότητα

Υποβάλετε αυτήν τη φόρμα για τις τρέχουσες τιμές και τη διαθεσιμότητα αυτού του NSN.
Αριθμός ανταλλακτικού:
Ποσότητα:
Διεύθυνση ηλεκτρονικού ταχυδρομείου:
Τηλέφωνο:
Αναφορά:
Εταιρεία:
Όνομα:

Δεν μοιραζόμαστε ούτε πουλάμε τις πληροφορίες σας σε κανέναν.
Μυστικότητα | Όροι

All major credit cards accepted as well as gov. p-cards

Εικόνες

Εικόνες αναφοράς αυτού του μέρους

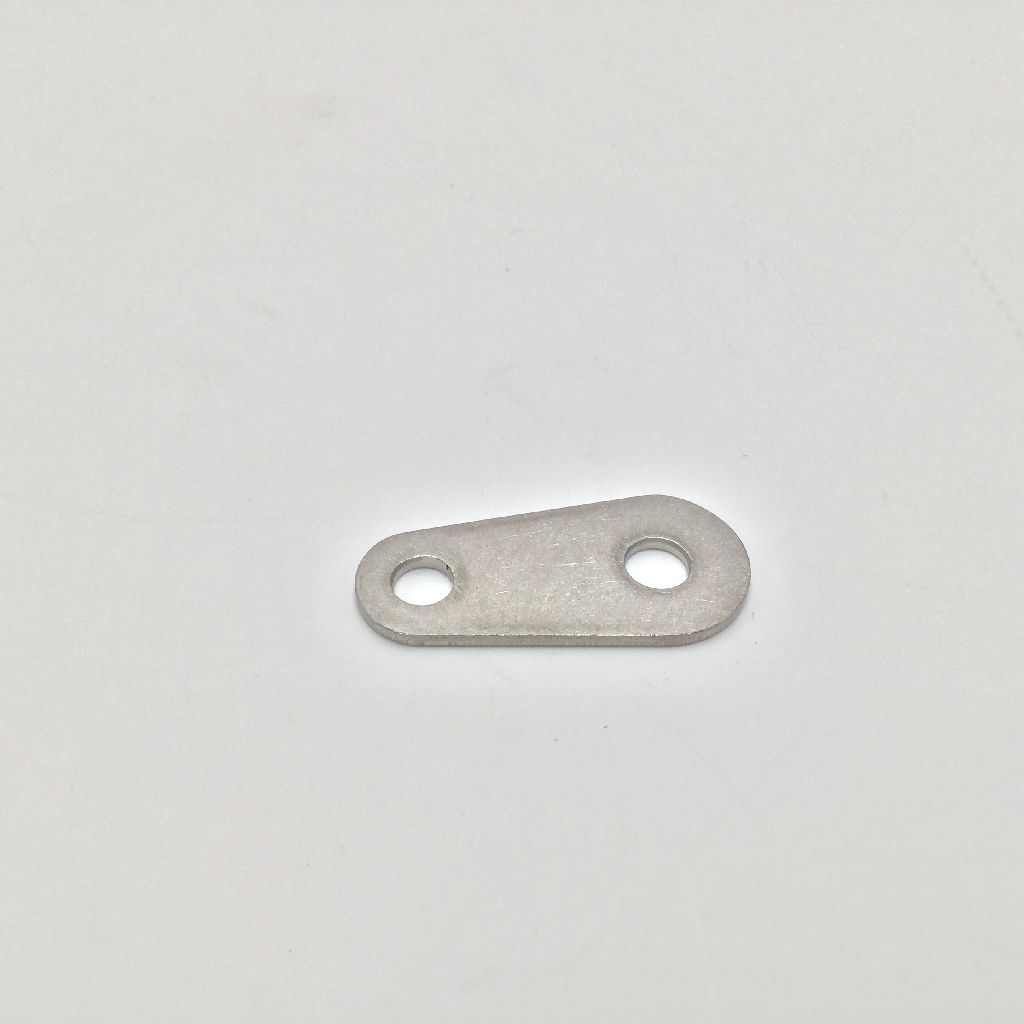

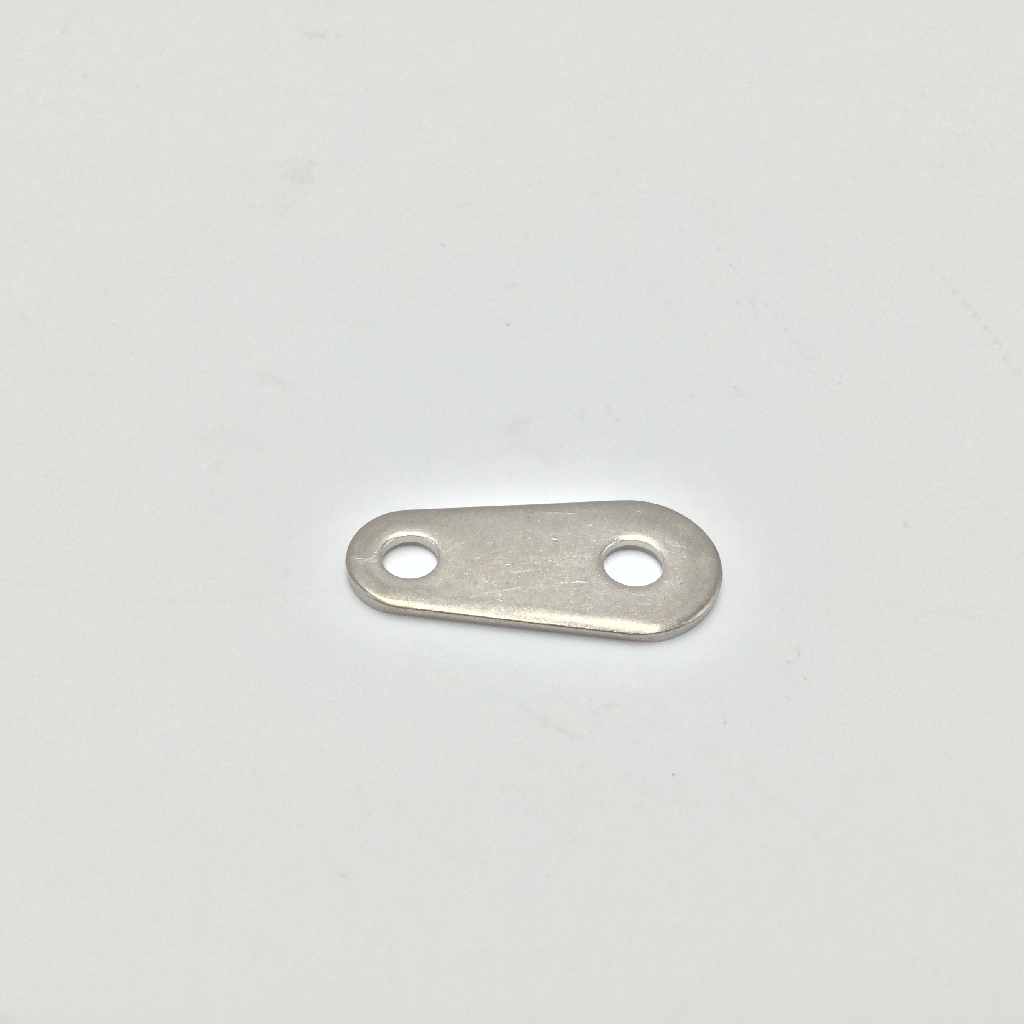

Εικόνα του εθνικού αριθμού αποθέματος  5325-00-111-3806 Εικόνα του εθνικού αριθμού αποθέματος  5325-00-111-3806

Η ιστορική τιμολόγηση για αυτό το προϊόν είναι μεταξύ 1.8 and 2.43 USD. Ανάλογα με την ποσότητα, τη διαθεσιμότητα, την κατάσταση, τον χρόνο παράδοσης και την πιθανή διακοπή ενός προϊόντος, δεν μπορούμε να εγγυηθούμε την τιμολόγηση μέχρι να σας παρέχουμε μια ενημερωμένη προσφορά.

Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
7132780-01
Αποστρατιωτικοποίηση:
No
Διάρκεια ζωής:
N/A
Μονάδα μέτρησης:
50 EA
NIIN:
001113806
NSN
Εθνικός αριθμός αποθέματος:
5325-00-111-3806 5325001113806
TXT
Περιγραφή:
Turnlock Fastener Ejector Spring
INC
INC
Κωδικός ονόματος στοιχείου:
18424
MRC:
The distance from the centerline to the axis of the item.ABGG
Radius:
0.300 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
0.062 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the ejector spring.AGSC
Ejector Spring Style:
Flat
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the spring.AGSD
Springlength:
1.270 inches
MRC:
None.AGSF
Spring Width:
0.440 inches
MRC:
None.AGSG
Spring Mounting Hole Diameter:
0.187 inches
MRC:
None.AGSH
Distance From Grommet Hole Center To Mounting Hole Center:
0.750 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 6061
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
