Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
8427065
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

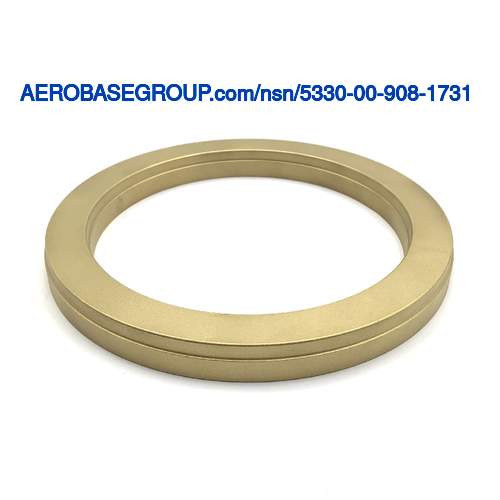

Packing Retainer
Κωδικός ονόματος στοιχείου:
13706
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Special
MRC:
A measurement from the bottom to the top of a cross section,in distinction from depth.ADVN
Cross-sectional Height:
Between 0.500 inches and 0.510 inches
Flanged Body Outside Diameter:
Between 5.666 inches and 5.668 inches
Body Recess Diameter:
Between 4.578 inches and 4.583 inches
Body Recess Depth:
Between 0.196 inches and 0.204 inches
MRC:
The length of a straight line which passes through the center of the center hole,and terminates at the circumference.ADYT
Center Hole Diameter:
Between 4.516 inches and 4.520 inches
Peripheral Diameter:
5.745 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
M110 howitzer family
MRC:
Indicates the storage feature/s/ required for an item in order to provide the degree of protection necessary to maintain serviceability standards.CTSF
Protective Storage Feature:
General purpose
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-b-637 cp 1 cd 1/2 hard federal specification single material response
