Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
blc12ta60s
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

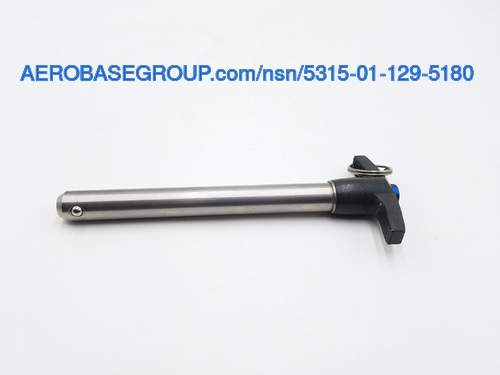

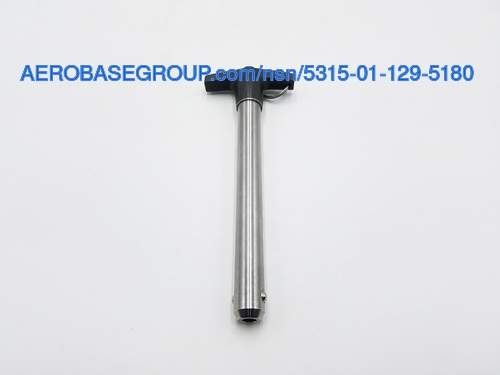

Quick Release Pin
Κωδικός ονόματος στοιχείου:
08323
MRC:
A measurement of the longest dimension of the handle,in distinction from width.AASN
Handle Length:
3.100 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.882 inches and 0.892 inches
MRC:
The number of detents included in the item.ABRM
Detent Quantity:
2
MRC:
The means by which the item is actuated.AFLW
Actuation Method:
Lever
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
6.020 inches
MRC:
Indicates the type of actuation provided.APCM
Actuation Type:
Pull
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
82500 double pounds per square inch
Shoulder To Head End Distance:
1.720 inches
MRC:
Indicates the type of device that is attached to the pin.CTDJ
Pin Attachment Type:
Link or ring
Detent To Tapered End Distance:
Between 0.640 inches and 0.670 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy handle
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel shank
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Aluminum handle
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium shank
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
T handle
