Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
blfn6
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

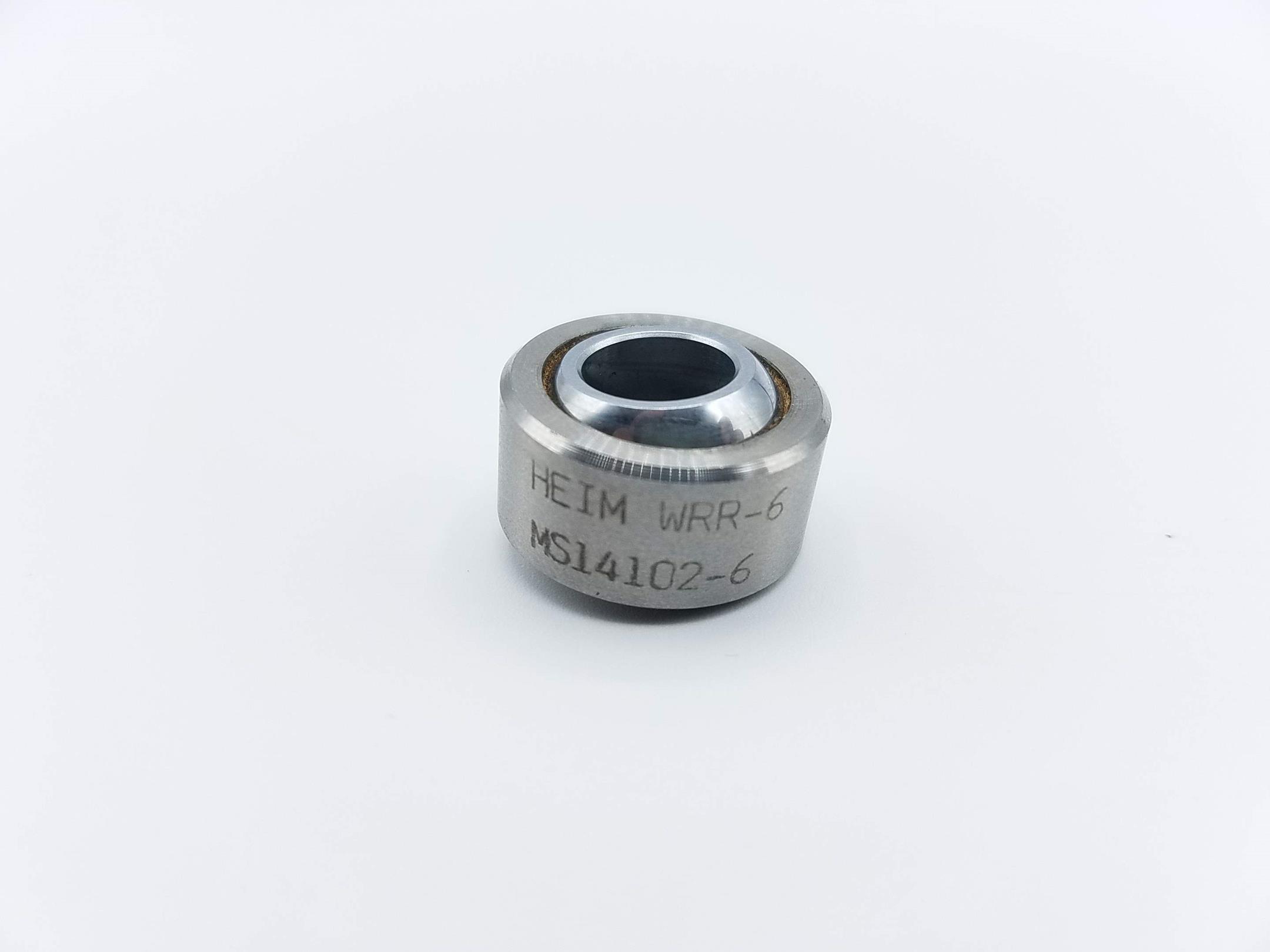

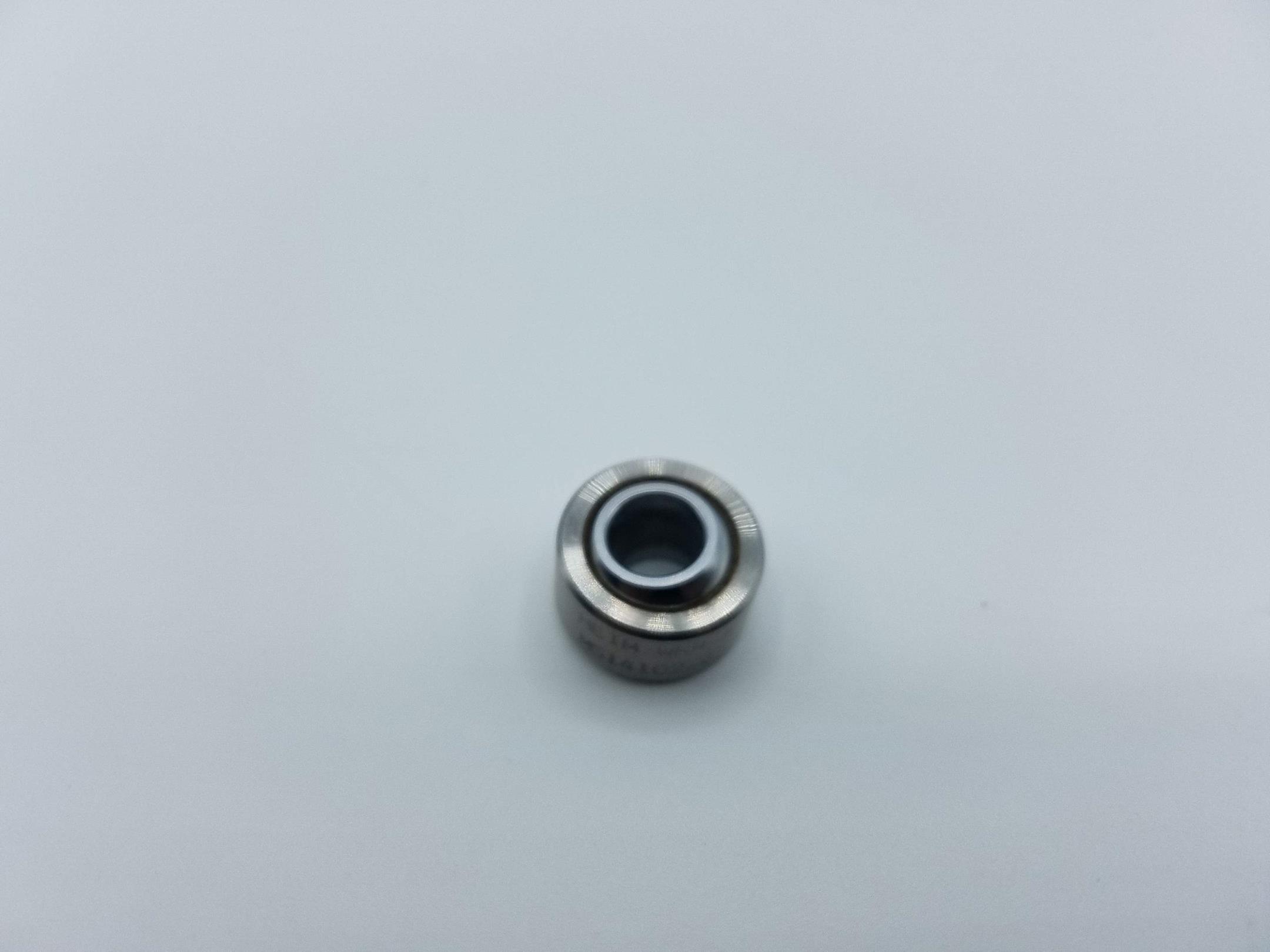

Self-aligning Plain Bearing
Κωδικός ονόματος στοιχείου:
13208
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.3745 inches and 0.3750 inches
Outer Member Outside Diameter:
Between 0.8120 inches and 0.8125 inches
Outer Member Width:
0.3070 inches
Inner Member Width:
Between 0.4010 inches and 0.4060 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
14000 pounds
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic race liner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Aisi 440e 73428 assn standard single material response inner member
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium inner member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
With insert and/or liner with staking groove
