Αριθμός ανταλλακτικού:
lc584axl
Αποστρατιωτικοποίηση:
Yes - DEMIL/MLI
Πληροφορίες ανταλλακτικού
4 channel dc to 1ghz; 2gs/s (4 channel), 4gs/s (2 channel), 8gs/s (1 channel)
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

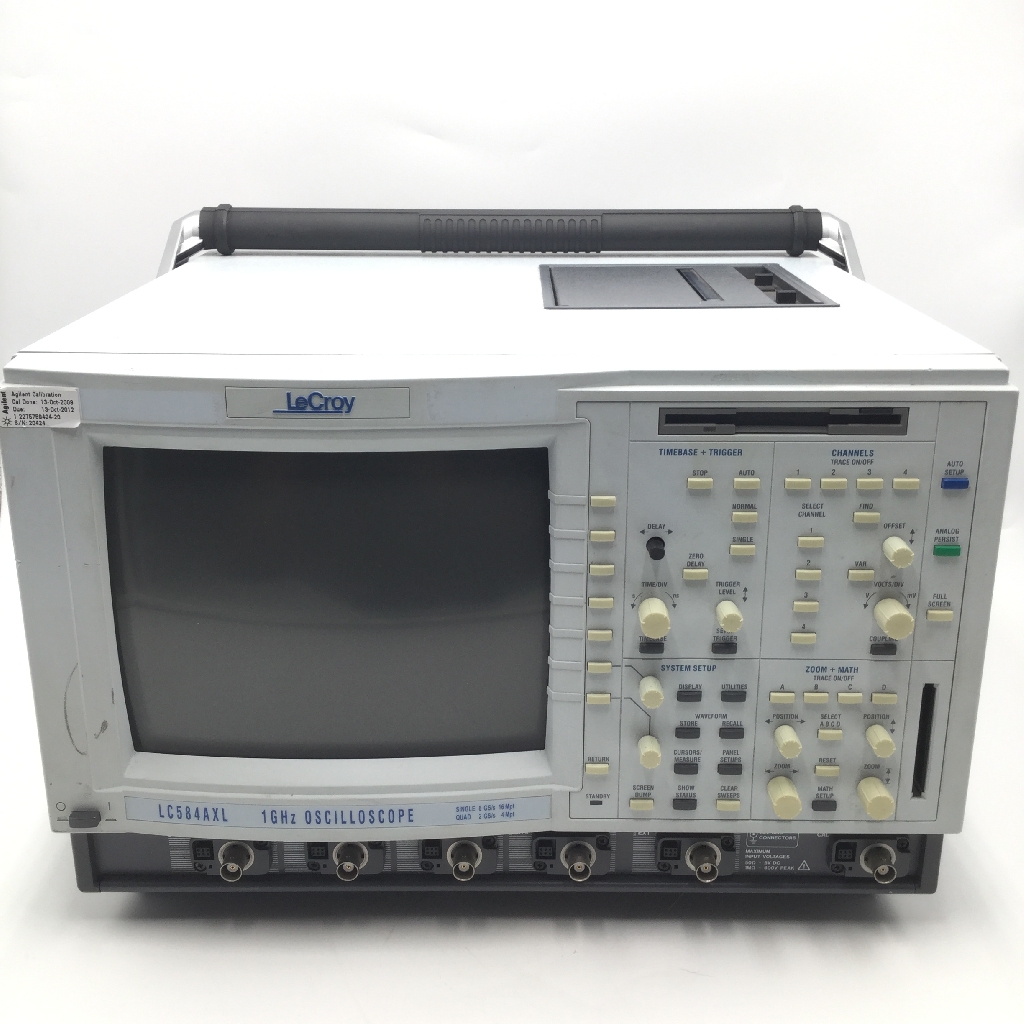

Oscilloscope
Κωδικός ονόματος στοιχείου:
00357
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
556.0 millimeters
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
265.0 millimeters
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
446.0 millimeters
MRC:
Indicates the type of current whether alternating,direct,or both.ACDC
Current Type:
Ac
MRC:
The number of complete cyclic changes,per unit of time,for which an item is rated.ACZB
Frequency Rating:
Between 45.0 hertz and 66.0 hertz
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
F-15 aircraft ests
MRC:
The name and number of parts supplied with the item which may be required for application.AKYD
Accessory Components And Quantity:
Front scope cover, 10: 1 10megohm pp005 probe per channel, two 250v fuses, ac power cord and plug, operator manual
MRC:
The value(s) of potential for which the item is rated.AMSE
Voltage Rating:
90.0 pounds per hour dry and 250.0 pounds per hour with retaining chain
MRC:
Designates the relative or proportionate dimensions of the screen.BGQK
Screen Size:
10 inch
MRC:
An indication of whether or not sweep circuits are included.BGQL
Sweep Circuits:
Included
MRC:
An indication of whether or not a generator driven feature is included.BGQM
Generator Driven Feature:
Included
MRC:
Indicates the type of sweep circuits provided.BGQN
Sweep Circuit Type:
Horizontal
MRC:
The number of alternating current phases.FAAZ
Phase:
Single
MRC:
The alpha-numeric designation that identifies the classification of the item according to the category of functions performed.FCLS
Functional Classification:
Aa-3.2
MRC:
Describes the capabilities,intended use,and/or purpose for which the item is provided.FTLD
Functional Description:
4 channel 1ghz color digital oscilloscope with graphic printer
MRC:
Indicates the date the item was entered into mil-hdbk-300.NTRD
Entry Date:
09-07-21
MRC:
Literature and references available for information pertaining to the item.RDAL
Reference Data And Literature:
To 33a1-5-42-2
MRC:
Characteristics or qualities of an item,not covered in any other requirement,which are considered essential information for one or more functions excluding nsn assignment.SUPP
Supplementary Features:
Includes graphic printer assembly located on top
