Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
mil-f-118310fig6tbl2nps34
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

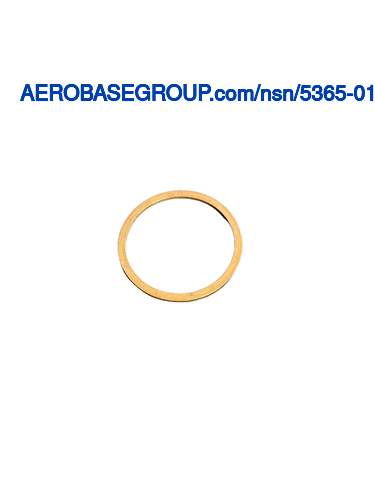

Ring Spacer
Κωδικός ονόματος στοιχείου:
24307
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 1.495 inches and 1.505 inches
MRC:
The length of a straight line which passes through the center of an item,and terminates at the outside circumference.ABHE
Outside Diameter:
Between 1.710 inches and 1.720 inches
MRC:
An overall measurement of the smallest dimension of an item,in distinction from length or width.ADUM
Overall Thickness:
Between 0.055 inches and 0.065 inches
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
32.0 microinches bore
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 922 or copper alloy 903
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm b61 assn standard all material responses or qq-c-390 federal specification all material responses
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
23 table
