Αριθμός ανταλλακτικού:
ms14198k7c
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

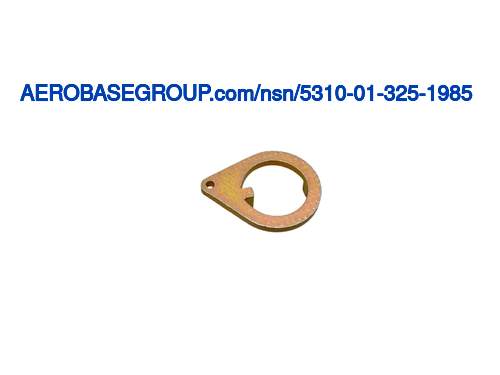

Key Washer
Κωδικός ονόματος στοιχείου:
01869
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.443 inches and 0.453 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
Between 0.620 inches and 0.640 inches
Internal Prebent Key Width:
Between 0.077 inches and 0.087 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
Between 0.058 inches and 0.068 inches
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 38.0 rockwell c and 45.0 rockwell c
Distance From Key Center To Wire Hole Center:
Between 0.108 inches and 0.138 inches
Wire Hole Diameter:
Between 0.057 inches and 0.067 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630 or steel comp xm-12
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5343 assn standard 1st material response or ams 5659 assn standard 2nd material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Internal prebent key
