Αριθμός ανταλλακτικού:
ms17830-10c
Πληροφορίες ανταλλακτικού
Steel comp 316 or 30430 are also accepatable materials
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

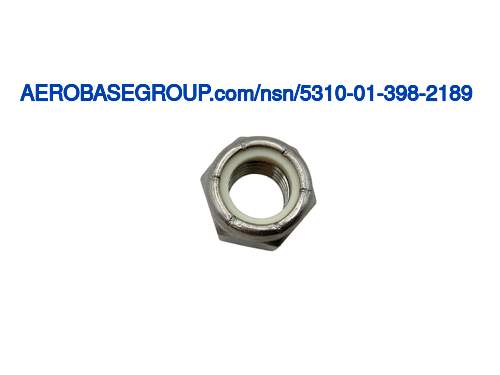

Hexagon Self-locking Nut
Κωδικός ονόματος στοιχείου:
05277
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with nonmetallic insert
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
Nut Height:
Between 0.732 inches and 0.766 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.928 inches and 0.940 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
250.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
11
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.625 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
88.0 degrees first end
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Chamfered
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyamide locking insert
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303 except insert or steel comp 303se except insert or steel comp 304 except insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard single material response except insert
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-m-20693 military specification single material response locking insert
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response nut
MRC:
The technical differentiating characteristic/s/ of an item of supply which depart/s/ from the text of a specification or a standard in that it represents a selection of characteristics stated in the specification or standard as being optional,or a variation from one or more of the stated characteristics,or an additional characteristic not stated in the specification or standard.ZZZW
Departure From Cited Document:
As modified by mater
