Αριθμός ανταλλακτικού:
ms21141-0810
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

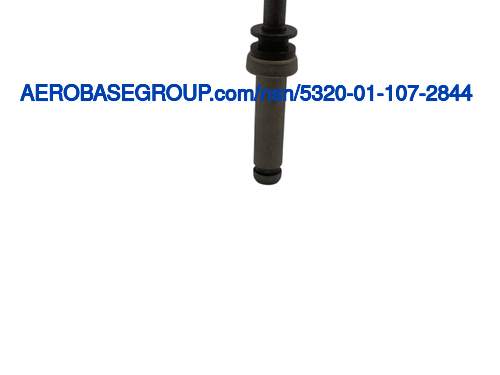

Blind Rivet
Κωδικός ονόματος στοιχείου:
00864
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
0.844 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Tapered pan
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.125 inches and 0.135 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
0.250 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Self-plugging mechanically locked stem
Head Major Diameter:
Between 0.400 inches and 0.432 inches
MRC:
The device by which the item is expanded and set.ABAF
Expansion Device:
Break stem
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.594 inches and 0.657 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5737 assn standard all material responses
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification all treatment responses
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
96906-ms21141 government standard
