Αριθμός ανταλλακτικού:
ms21209f1010l
Πληροφορίες ανταλλακτικού

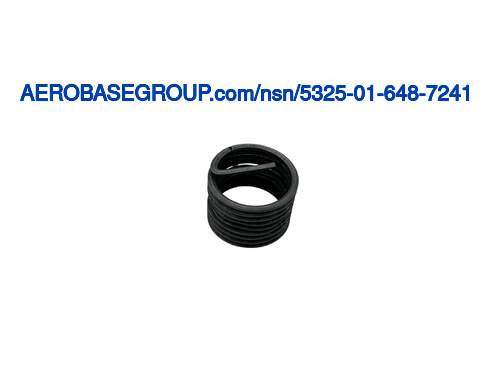

Insert, screw thread, fine, screw locking, helical coil
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:
Screw Thread Insert
Κωδικός ονόματος στοιχείου:
11444
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.625 inches
MRC:
A measurement of the longest dimension of any object,in distinction from width.ABRY
Length:
0.625 inches
MRC:
Designates the size by which the insert is identified.BZGJ
Insert Size:
0.733 in. Min, 0.758 in. Maximum free od
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.625 inches
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Gray
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Lubricant
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
As5272 assn standard single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Coil
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf
