Αριθμός ανταλλακτικού:
ms35810-14
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

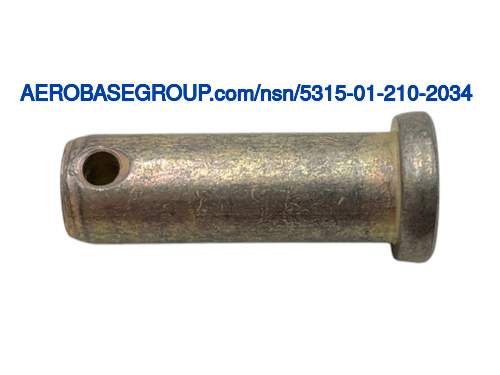

Headed Straight Pin
Κωδικός ονόματος στοιχείου:
02384
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat chamfer
MRC:
A measurement of the longest dimension of the chamfer,in distinction from width.AAZP
Chamfer Length:
0.078 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
Between 0.368 inches and 0.373 inches
Under Head Length:
Between 0.938 inches and 1.062 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the holes.ABRB
Hole Arrangement Style:
One end drilled
First Hole Diameter:
Between 0.104 inches and 0.119 inches
Distance From Centerline Of Hole To End Of Pin:
0.124 inches
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
70.0 rockwell superficial 30-n
Pin Chamfer Angle:
Between 40.0 degrees and 45.0 degrees
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
41000 double pounds per square inch
Pin Head Diameter:
Between 0.490 inches and 0.510 inches
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
Between 0.115 inches and 0.135 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1010
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed-std 66 federal standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, class 3 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Straight
