Αριθμός ανταλλακτικού:
na0038-100010
Μονάδα μέτρησης:
No qup EA
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

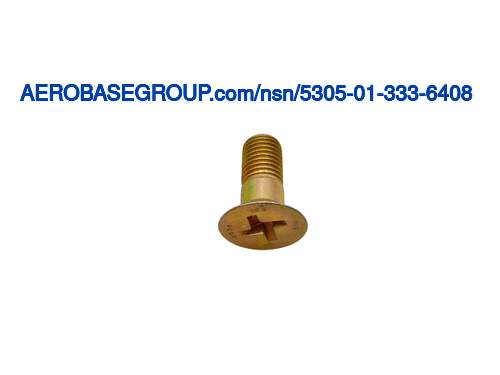

Close Tolerance Screw
Κωδικός ονόματος στοιχείου:
29294
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
Between 14.0 millimeters and 15.0 millimeters
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 24.2 millimeters and 24.8 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 18.8 millimeters and 20.0 millimeters
MRC:
The length of a straight line which passes through the center of the grip,and terminates at the circumference.AAUR
Grip Diameter:
Between 9.962 millimeters and 9.987 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Offset cruciform (torque set)
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
10.0 millimeters
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 9.8 millimeters and 10.2 millimeters
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
36.0 rockwell c and 40.0 rockwell c
MRC:
A measurement of distance between corresponding points on two adjacent threads measured parallel to the thread axis,expressed in millimeters.CQQR
Thread Pitch In Millimeters:
1.25
MRC:
A numeric-alpha designator indicating established pitch and crest diameter tolerance positions and grades of an external thread.CQWR
External Thread Tolerance Class:
4h6h
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 95.0 degrees and 105.0 degrees
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
0.8 micrometers bearing surface of head
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
0.8 micrometers grip
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
0.8 micrometers threads
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4340 or steel comp 8740
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2 cl 2 federal specification single treatment response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Mj
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-na0038 professional/industrial association standard
