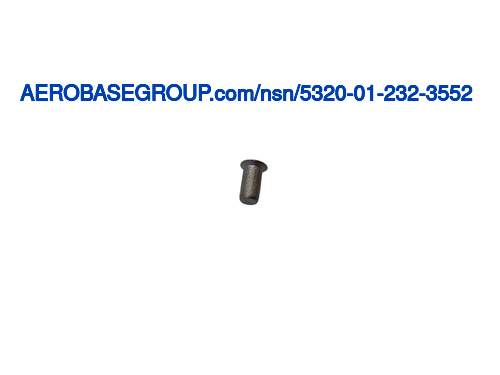

Αριθμός ανταλλακτικού NAS1097U4-4

Solid Rivet
Διαθεσιμότητα αποθεμάτων  Κωδικοί κατάστασης προϊόντος

Αριθμός ανταλλακτικού nas1097u4-4 είναι σε απόθεμα στις ακόλουθες ποσότητες και συνθήκες.

  • NS: 741
  • NE: 23695
  • SV: 18

Σημείωση: Η διαθεσιμότητα αυτού του στοιχείου ενημερώθηκε τελευταία φορά 10/04/2021 και μπορεί να έχουν αλλάξει από τότε. Ζητήστε προσφορά για ενημερωμένες τιμές και διαθεσιμότητα.

Τιμολόγηση και διαθεσιμότητα

Υποβάλετε αυτήν τη φόρμα για τις τρέχουσες τιμές και τη διαθεσιμότητα αυτού του NSN.
Αριθμός ανταλλακτικού:
Ποσότητα:
Διεύθυνση ηλεκτρονικού ταχυδρομείου:
Τηλέφωνο:
Αναφορά:
Εταιρεία:
Όνομα:

Δεν μοιραζόμαστε ούτε πουλάμε τις πληροφορίες σας σε κανέναν.
Μυστικότητα | Όροι

All major credit cards accepted as well as gov. p-cards

Η ιστορική τιμολόγηση για αυτό το προϊόν είναι μεταξύ 0.4 and 0.54 USD. Ανάλογα με την ποσότητα, τη διαθεσιμότητα, την κατάσταση, τον χρόνο παράδοσης και την πιθανή διακοπή ενός προϊόντος, δεν μπορούμε να εγγυηθούμε την τιμολόγηση μέχρι να σας παρέχουμε μια ενημερωμένη προσφορά.

Αριθμός ανταλλακτικού
Αποστρατιωτικοποίηση
Διάρκεια ζωής
UOM
NIIN
Αριθμός ανταλλακτικού:
nas1097u4-4
Αποστρατιωτικοποίηση:
No
Διάρκεια ζωής:
N/A
Μονάδα μέτρησης:
1 EA
NIIN:
012323552
NSN
Εθνικός αριθμός αποθέματος:
5320-01-232-3552 5320012323552
TXT
Περιγραφή:
Solid Rivet
INC
INC
Κωδικός ονόματος στοιχείου:
00861
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.240 inches and 0.260 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Undersized oval countersunk
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.003 inches and 0.005 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.124 inches and 0.127 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Straight w/radius chamfered tip
MRC:
None.AAZG
Head Major Diameter:
0.1957 inches
MRC:
None.AAZH
Head Minor Diameter:
Between 0.134 inches and 0.144 inches
MRC:
None.AAZJ
Countersink Height:
0.0286 inches
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
50000 single pounds per square inch
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.5 degrees and 100.5 degrees
MRC:
A combination of timed heating and cooling operations applied for the purpose of annealing or hardening the item.HEAT
Heat Treatment:
Annealed
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy uns r58450
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4982 assn standard single material response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas1097 professional/industrial association standard
