Αριθμός ανταλλακτικού:
nas1199-6-20
Μονάδα μέτρησης:
No qup LB
Πληροφορίες ανταλλακτικού

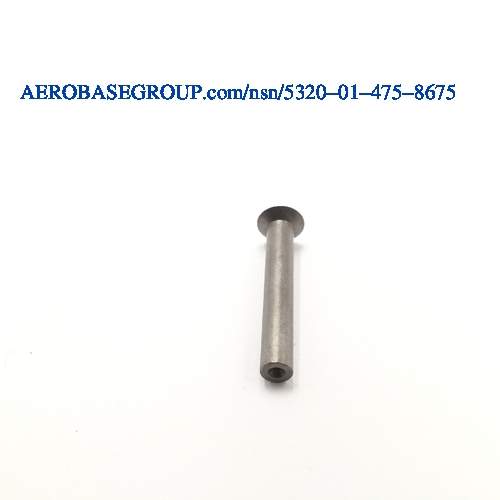

Rivet, solid, 100 degree flush head a286 corrosion resistant steel
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:
Solid Rivet
Κωδικός ονόματος στοιχείου:
00861
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
1.250 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.186 inches and 0.191 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Countersunk (undrilled)
Head Major Diameter:
Between 0.323 inches and 0.365 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 95.0 degrees and 100.5 degrees
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Oshear strength at room temp as follows, 85, 000 psi to 95, 000 psi; 90, 000 psi after driving; heat at 1650 degrees f for 25 minutes and oil quench; age at 1250 degrees f to 1350 degrees f for 30 to 90 min to meet shear requirements; rivets hall drive cold satisfactorly with full heads free from cracks; must be of uniform quality and free from scale, fins, seams, clinch or die marks, cold shuts or other injurous defects; head cocking angle relative to axis of rivet .5 degree max
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5737 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas1199 professional/industrial association standard
