Αριθμός ανταλλακτικού:
nas1330s8e-326
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

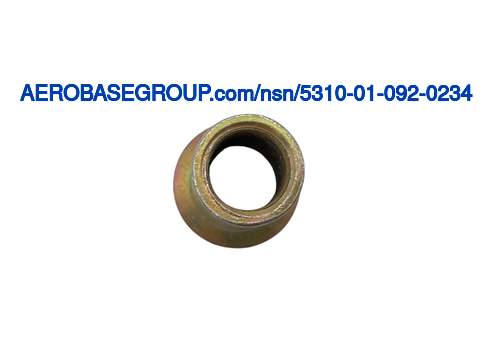

Blind Rivet Plain Nut
Κωδικός ονόματος στοιχείου:
01873
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
0.906 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Blind rivet w/smooth round shank
Nut Diameter:
Between 0.621 inches and 0.625 inches
MRC:
A measurement of the longest dimension of the nut,in distinction from width.ACVN
Nut Length:
Between 1.079 inches and 1.109 inches
MRC:
The area between the maximum and minimum thickness of material in which a specific blind rivet nut can be properly installed.ADEY
Err Default:
+0.226/+0.326 inches
MRC:
Indicates the type of end included on the shank.ADFN
Shank End Type:
Open
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
13
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.500 inches
MRC:
The included angle of the head countersink.CTPW
Head Countersink Angle:
Between 99.0 degrees and 101.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1108 or steel comp 1110
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 1, cl 3 federal specification single treatment response
