Αριθμός ανταλλακτικού:
rmlhta51-2860-62
NSN
Εθνικός αριθμός αποθέματος:
TXT
Περιγραφή:

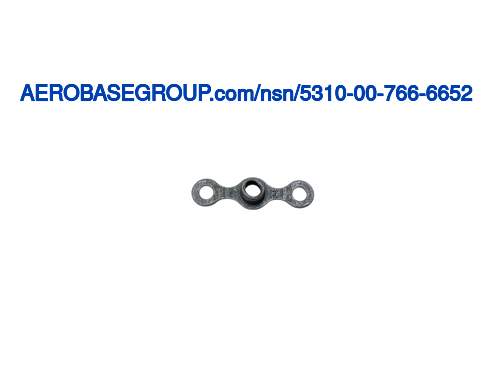

Plate Self-locking Nut
Κωδικός ονόματος στοιχείου:
05280
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque all metal design
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Dry film lubricant
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
Between 0.098 inches and 0.103 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Plate
MRC:
A measurement of the longest dimension of the nut,in distinction from width.ACVN
Nut Length:
0.948 inches
MRC:
A measurement of the smallest dimension of a plate,in distinction from length or width.ADEB
Plate Thickness:
0.047 inches
MRC:
A measurement taken at right angles to the length of a plate,in distinction from thickness.ADEC
Plate Width:
Between 0.239 inches and 0.265 inches
MRC:
The means by which the nut is mounted.ADFP
Nut Mounting Provision:
Straight holes
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the mounting hole(s).ADFU
Mounting Hole Arrangement Style:
2 holes
Distance From Aperture Center To Mounting Hole Center:
Between 0.339 inches and 0.349 inches
MRC:
A measurement of the center to center distance between the mounting holes along the length.ADFY
Center To Center Distance Between Mounting Holes Along Length:
Between 0.686 inches and 0.690 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
450.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
49.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.138 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5735 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
